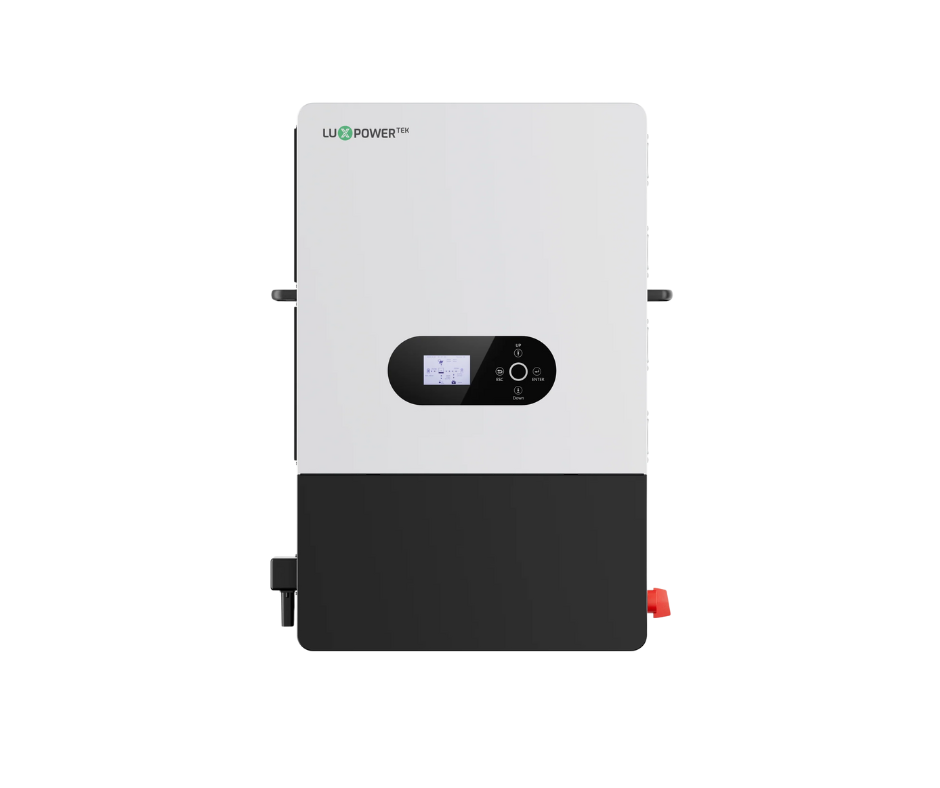

Luxpower 12kW Hybrid Inverter Single
Luxpower 12kW Hybrid Inverter Single
Regular price
R 19,400.00 ZAR
Regular price
Sale price
R 19,400.00 ZAR
Input (PV DC)
- Max. PV Array Power: 24000W (12000/12000)
- Rated PV Input Voltage: 320V
- Number of Independent MPPT Inputs: 2
- PV Input Voltage Range: 100-480V
- MPPT Voltage Range: 120-385V
- Start-up Voltage: 100V
- Max. PV Input Current per MPPT: 35A
- Max. PV Short-Circuit Current Input per MPPT: 51A
Battery
- Compatible Battery Type: Lithium-ion/Lead-Acid
- Rated Battery Voltage: 48/51.2V
- Battery Voltage Range: 46.4-60/38.4-60V
- Max. Charging/Discharging Current: 250A
- Max. Charging/Discharging Power: 12000W
- Force Wake Up Battery from PV and Grid Function: Yes
Grid
- Rated AC Voltage: 230V
- Acceptable Input Voltage Range: 90-280V
- Rated AC Frequency: 50Hz
- Rated AC Input Current: 100A
- Rated AC Input Power: 12000W
- Power Factor (PF): 0.99
- Total Harmonic Distortion (THDI): <5%
- Max. Continuous AC Passthrough Current: 100A
UPS (Uninterruptible Power Supply)
- Rated Output Power: 12000W
- Rated Output Voltage: 230V
- Rated Output Current: 60/50A
- Rated Output Frequency: 50/60Hz (Auto detection)
- Surge Power, Duration: 2Pn, 5s
- Switching Time (UPS): <10ms@Single; <20ms@Parallel
- Wave Form: Sine wave
- Total Harmonic Distortion (THDV): <3%
GEN (Generator)
- Acceptable Input Voltage Range: 90~280V
- Max. AC Input Voltage: 280V
- Max. AC Input Current: 63A
- Rated Input Frequency: 50Hz/60Hz (Auto detection)
- Transfer Time: <10ms@Single; <20ms@Parallel
- THDV: <3%
- Overload Protection: 5s@≥150% load / 10s@110%~150% load
Efficiency
- Max. Efficiency: 90.0%
- Max. Charging/Discharging Efficiency: 90.0%
- Max. MPPT Efficiency: 99.0%
Protection
- PV Reverse Polarity Protection: Yes
- Over Current/Voltage Protection: Yes
- AC Short-Circuit Current Protection: Yes
- Grid Monitoring: Yes
- DC Switch: Yes
- DC/AC Surge Protection Type III: Yes
- Battery Reverse Polarity Protection: Yes
- AC/UPS/Battery/Generator Breakers Integrated: Yes
General
- Dimensions (WxHxD): 530x830x150mm / 17.7225.595.9 inches
- Weight: 40kg
- Ingress Protection Rating: IP20
- Operating Environment Temperature Range: 0~45°C
- Storage Temperature Range: -15~60°C
- Relative Humidity: 5% ~ 95%
- Display & Communication Interface: LCD+RGB, RS485 / Wi-Fi / CAN
- Warranty: 2 years
- Cooling Method: Smart cooling
- Topology on AC / Battery Side: Transformer-less / Transformer
- Altitude: <2000m
- Noise Emission (typical): <50dB
- Standards & Certification: CE
